CYCLO-CROSS
Guide: > Products > CYCLO-CROSS >

  • SPEC
  • FEATURES
  • GEOMETRY

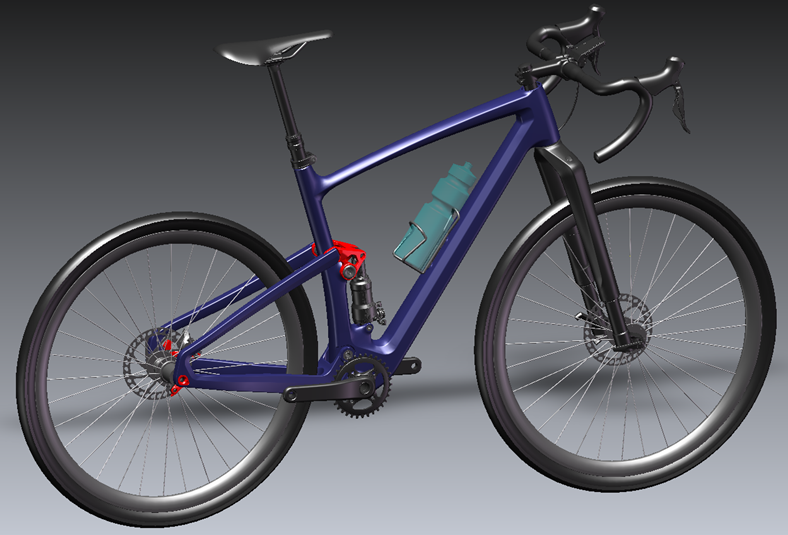

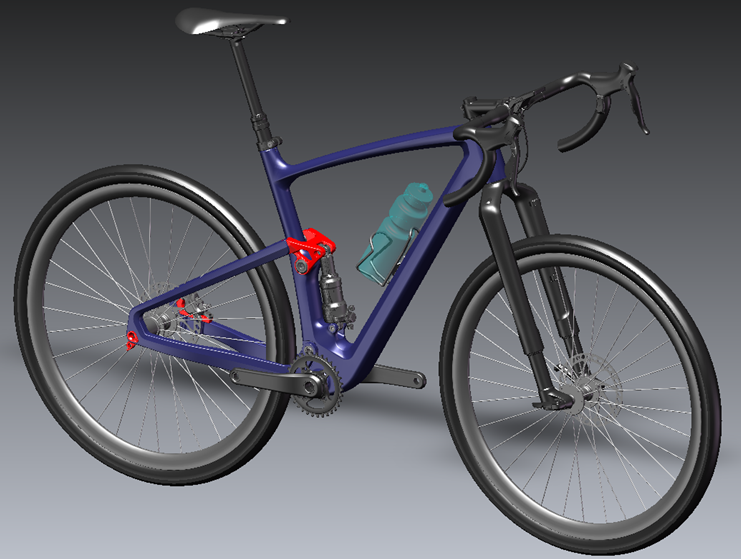

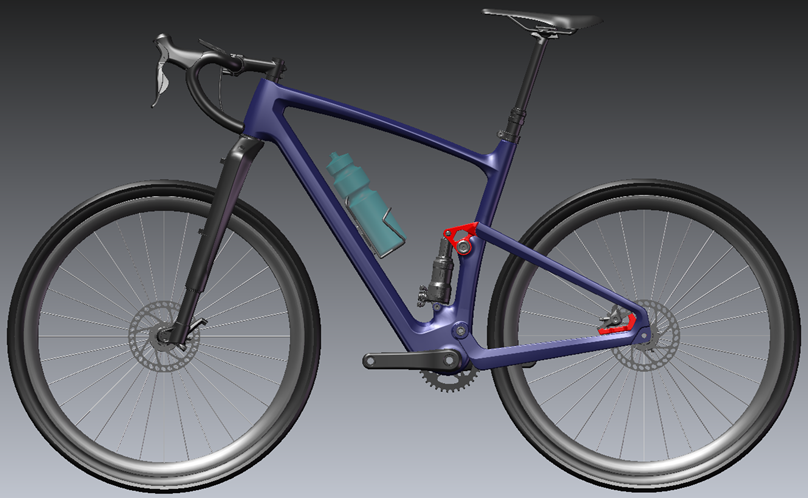

CARBON FULL SUSPENSION GRAVEL FRAME R14



Use for: Gravel Bike

Frame:  R14

Feature: 142*12mm Thru Axle System

Material: full Toray carbon

Finish: UD Matt/Clear coating

Headset: Tapered (1-1/8" to 1-1/2")

Fork Travel: 80/100mm

Rear Travel: 100mm

Rear shock: 165*40/45mm

Adjustable Seat tube: 30.9mm/ S size 350mm/ M 350mm/ L 400mm/ XL 400mm

Available sizes: 50/52/54/56cm

Brakes: Flat Mount+ Post Mount (Disc 160mm)

Mat Tire size: 700*48C

Warranty: 2 years

Related Products :

  • Name: GRAVEL R14
  • Model:
  • Download SGS:Download
SPEC



CARBON FULL SUSPENSION GRAVEL FRAME R14



Use for: Gravel Bike

Frame:  R14

Feature: 142*12mm Thru Axle System

Material: full Toray carbon

Finish: UD Matt/Clear coating

Headset: Tapered (1-1/8" to 1-1/2")

Fork Travel: 80/100mm

Rear Travel: 100mm

Rear shock: 165*40/45mm

Adjustable Seat tube: 30.9mm/ S size 350mm/ M 350mm/ L 400mm/ XL 400mm

Available sizes: 50/52/54/56cm

Brakes: Flat Mount+ Post Mount (Disc 160mm)

Mat Tire size: 700*48C

Warranty: 2 years

FEATURES

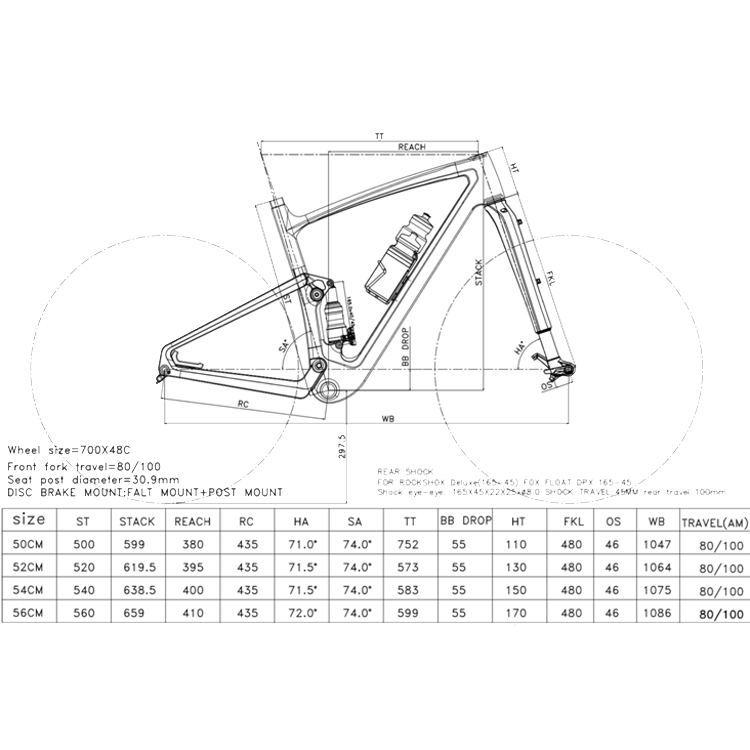

GEOMETRY
